本公司生产的不锈钢电加热水箱有36V、220V两种型号可供选择，见下表，同时本公司还生产热镀锌饮用水箱（Q235材质，非电加热）供选择（参数略）。
1、电加热饮水箱（36V）
36V电加热饮水箱
规格4000*500mm，容量300L，内胆采用304不锈钢，外胆采用201不锈钢，板材厚度1.2mm。分为水槽和控制箱两部分，控制箱材质为不锈钢。采用低压加热蘑菇视频
，电压由220V转为36V，通过底部三块加热板加热，总功率2400W。
逼真的画面
范围
评论
加热装置：3块底部加热板，总功率2400W，36V；具有防干烧功能；
排水球阀不作为水槽配件包含在保修范围内。
2、电加热水箱（220v）
规格4000*500mm，容量300L，内胆采用304不锈钢，外胆采用201不锈钢，板材厚度1.2mm，无控制箱，加热带采用条形硅胶板，分2级加热，具有接触面大，升温速度快，热能转换效率高的特点。该设备总功率2000w，安装时配有漏电保护器和接地线，确保使用安全可靠。
成分
蘑菇视频照片
参数说明
评论
不锈钢水槽
蘑菇视频
参数：材质：304不锈钢板，板厚≥1.2mm。长度4.0m，上宽50cm，下宽20cm；深30cm，带排水孔。横向支架采用镀锌管焊接，可拆卸，
保证6头奶牛同时饮水，水槽一端接水流量≥120升/分钟。水槽下方安装带有70mm排水孔的连续横梁，排水孔位于水槽一端并安装斜坡。
硅胶加热条
电加热，温度可控，采用位于水槽外侧的硅胶加热板
有效保证水槽整体均匀、快速加热。
定制饮用水箱液位控制器
内置高品质液位控制阀，可精确控制液位高度，液位控制阀保修一年，使用寿命长达3年。
内置液位控制阀，可有效防止奶牛饮水、戏水时水面晃动幅度大造成浮球阀损坏。
3、热镀锌饮用水箱
本蘑菇视频不含电加热，采用单层镀锌钢板冲压成型。
命令
蘑菇视频照片
参数说明
评论
热镀锌板饮用水箱
材质：Q235钢板，板厚≥3mm。长度4.0m，上宽50cm，下宽20cm；深30cm，带排水孔。垂直支腿和水平拉力梁均为热镀锌钢管，可拆卸。
水槽一端盛满水，流量≥120升/分钟，水槽下方安装有带排水孔的横梁，排水孔位于水槽一端。
|
36V电加热饮水箱 |
||
|
规格4000*500mm，容量300L，内胆采用304不锈钢，外胆采用201不锈钢，板材厚度1.2mm。分为水槽和控制箱两部分，控制箱材质为不锈钢。采用低压加热蘑菇视频 ，电压由220V转为36V，通过底部三块加热板加热，总功率2400W。 |
||
|
逼真的画面 |
范围 |
评论 |
|
|
加热装置：3块底部加热板，总功率2400W，36V；具有防干烧功能； |
排水球阀不作为水槽配件包含在保修范围内。 |
|
成分 |
蘑菇视频照片 |
参数说明 |
评论 |
|
不锈钢水槽 |
|
蘑菇视频 参数：材质：304不锈钢板，板厚≥1.2mm。长度4.0m，上宽50cm，下宽20cm；深30cm，带排水孔。横向支架采用镀锌管焊接，可拆卸， |
保证6头奶牛同时饮水，水槽一端接水流量≥120升/分钟。水槽下方安装带有70mm排水孔的连续横梁，排水孔位于水槽一端并安装斜坡。 |
|
硅胶加热条 |
|
电加热，温度可控，采用位于水槽外侧的硅胶加热板 |
有效保证水槽整体均匀、快速加热。 |
|
定制饮用水箱液位控制器 |
|
内置高品质液位控制阀，可精确控制液位高度，液位控制阀保修一年，使用寿命长达3年。 |
内置液位控制阀，可有效防止奶牛饮水、戏水时水面晃动幅度大造成浮球阀损坏。 |
|
命令 |
蘑菇视频照片 |
参数说明 |
评论 |
|
热镀锌板饮用水箱 |
|
材质：Q235钢板，板厚≥3mm。长度4.0m，上宽50cm，下宽20cm；深30cm，带排水孔。垂直支腿和水平拉力梁均为热镀锌钢管，可拆卸。 |
水槽一端盛满水，流量≥120升/分钟，水槽下方安装有带排水孔的横梁，排水孔位于水槽一端。 |
The stainless steel electric heating water tank produced by the company has two models to choose from: 36V and 220V, as shown in the table below. At the same time, the company produces hot-dip galvanized drinking water tanks (Q235 material, non electric heating) for selection (parameters omitted).
1,Electric heating drinking water tank(36V)
|
36V Electric heating drinking water tank |
||
|
Specification 4000 * 500mm, capacity 300L, inner liner made of 304 stainless steel, outer liner made of 201 stainless steel, plate thickness 1.2mm. It is divided into two parts: the sink and the control box. The material of the control box is stainless steel. Using low-voltage heating technology, the voltage is converted from 220V to 36V and heated through three heating plates at the bottom, with a total power of 2400W. |
||
|
Realistic picture |
parameter |
remarks |
|
|
Heating device: 3 bottom heating plates, total power 2400W, 36V; Has anti dry burning function; |
The drain ball valve is not included in the warranty as a sink accessory. |
2,Electric heating water tank(220v)
Specification 4000 * 500mm, capacity 300L, inner liner made of 304 stainless steel, outer liner made of 201 stainless steel, plate thickness 1.2mm, no control box, heating belt made of strip-shaped silicone plate, divided into 2 levels of heating, with characteristics of large contact surface, fast heating speed, and high thermal energy conversion efficiency. The device has a total power of 2000w and is equipped with leakage protection and grounding wire during installation, ensuring safe and reliable use.
|
component |
Product photos |
Parameter description |
remarks |
|

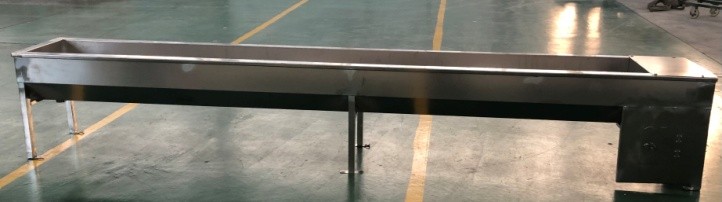

Stainless steel sink |
|
Technical parameters: Material: 304 stainless steel plate, plate thickness ≥ 1.2mm. Length 4.0m, upper width 50cm, lower width 20cm; 30cm deep with drain hole. The horizontal bracket is welded with galvanized pipes and can be disassembled, |
Ensure that 6 cows drink water at the same time, with one end of the sink receiving water at a flow rate of ≥ 120 liters/minute. A continuous crossbeam with a 70mm drainage hole is installed below the sink, with the drainage hole located at one end of the sink and installed with a slope. |
|

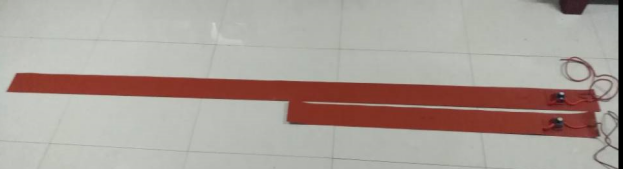

Silicone heating strip |
|
Electric heating with controllable temperature, using a silicone heating plate located on the outer side of the sink |
Effectively ensuring uniform and rapid heating of the sink as a whole. |
|

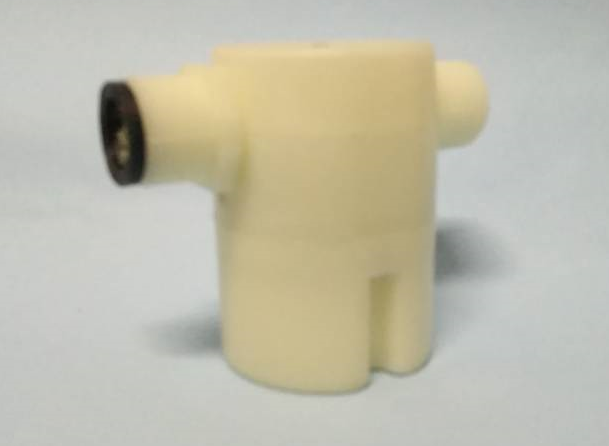

Customized liquid level controller for drinking water tank |
|
Built in high-quality liquid level control valve, which can accurately control the liquid level height. The liquid level control valve has a one-year warranty and a service life of up to 3 years. |
The built-in liquid level control valve can effectively prevent damage to the float valve caused by the large shaking of the water surface when cows drink and play in water. |
3,Hot dip galvanized drinking water tank
This product does not include electric heating and is formed by stamping a single-layer galvanized steel plate.
|
order |
Product photos |
parameter description |
remarks |
|

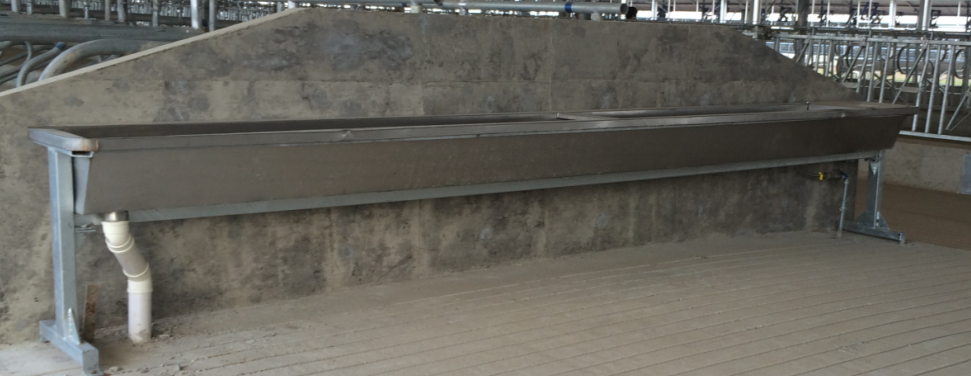

Hot dip galvanized sheet drinking water tank |
|
Material: Q235 steel plate, plate thickness ≥ 3mm. Length 4.0m, upper width 50cm, lower width 20cm; 30cm deep with drain hole. Both the vertical legs and horizontal tension beams are made of hot-dip galvanized steel pipes, which are detachable. |
One end of the sink is filled with water, with a flow rate of ≥ 120 liters/minute. A horizontal beam with a drainage hole is installed below the sink, and the drainage hole is located at one end of the sink. |
