（一）蘑菇视频特点
采用聚乙烯滚塑工艺一次成型，双层结构设计，外观精美且使用寿命长。
- 保温层厚度超过 10 厘米，在零下 25℃的环境下也能确保奶牛正常饮水。
- 饮水区盖子和水阀舱盖均采用快拆设计，不再使用螺丝固定，轻轻一拉即可打开盖子。
- 配备便捷的清洁和排水装置：侧排水和底排水。
- 电加热系统：功率 800W，采用 36V/24V 安全电压。电加热装置配备新型交流纯铜变压器，加热板内安装有热敏开关，可直接控制水温。
- 配备流量为 120 升 / 分钟的大流量浮球阀，属于自动进水装置，能及时补充水源。
（二）规格参数
|
序号 |
名称 |
规格 |
|
1 |
4 米 6 孔饮水槽（盖子可选） |
4000mm×550mm×580mm |
|
2 |
饮水槽槽体 |
- |
|
3 |
外层厚度 |
5mm |
|
4 |
内层厚度 |
5mm |
|
5 |
保温层填充材料 |
聚氨酯 |
|
6 |
保温层厚度 |
＞50mm |
（一）Characteristics
1．Polyethylene rotational molding process is molded at one time, and the double-layer structure design, which has a good appearance and long life.
2．The thickness of the insulation layer is more than 10cm. minus 25°C can ensure the normal drinking water of dairy cows,
3．The lid of the drinking water area of and the hatch cover of the water valve are all designed with quick release, which is no longer fixed by screws, and the lid can be opened with a slight pull.
4．It is equipped with convenient cleaning and draining devices: side drainage and lower drainage.
5．Electric heating system: 800W, 36V/24V safety voltage. The electric heating is equipped with a new type of AC pure copper transformer. A thermal switch is installed in the heating plate to directly control the water temperature.
6．Equipped with 120 liters/min large flow float valve, automatic water inlet device, timely water replenishment.
（二）Specs
|
Name |
Specs |
||
|
1 |

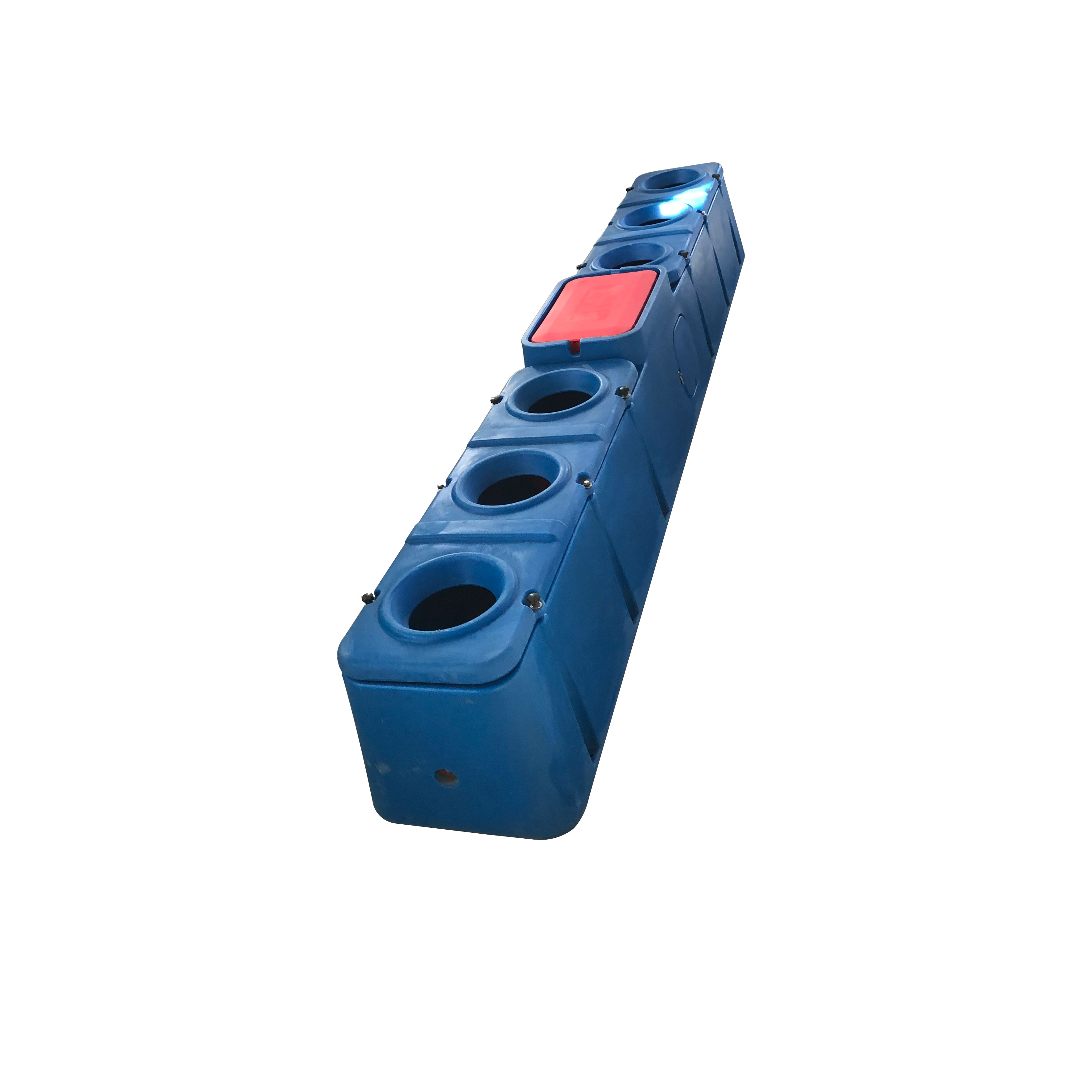

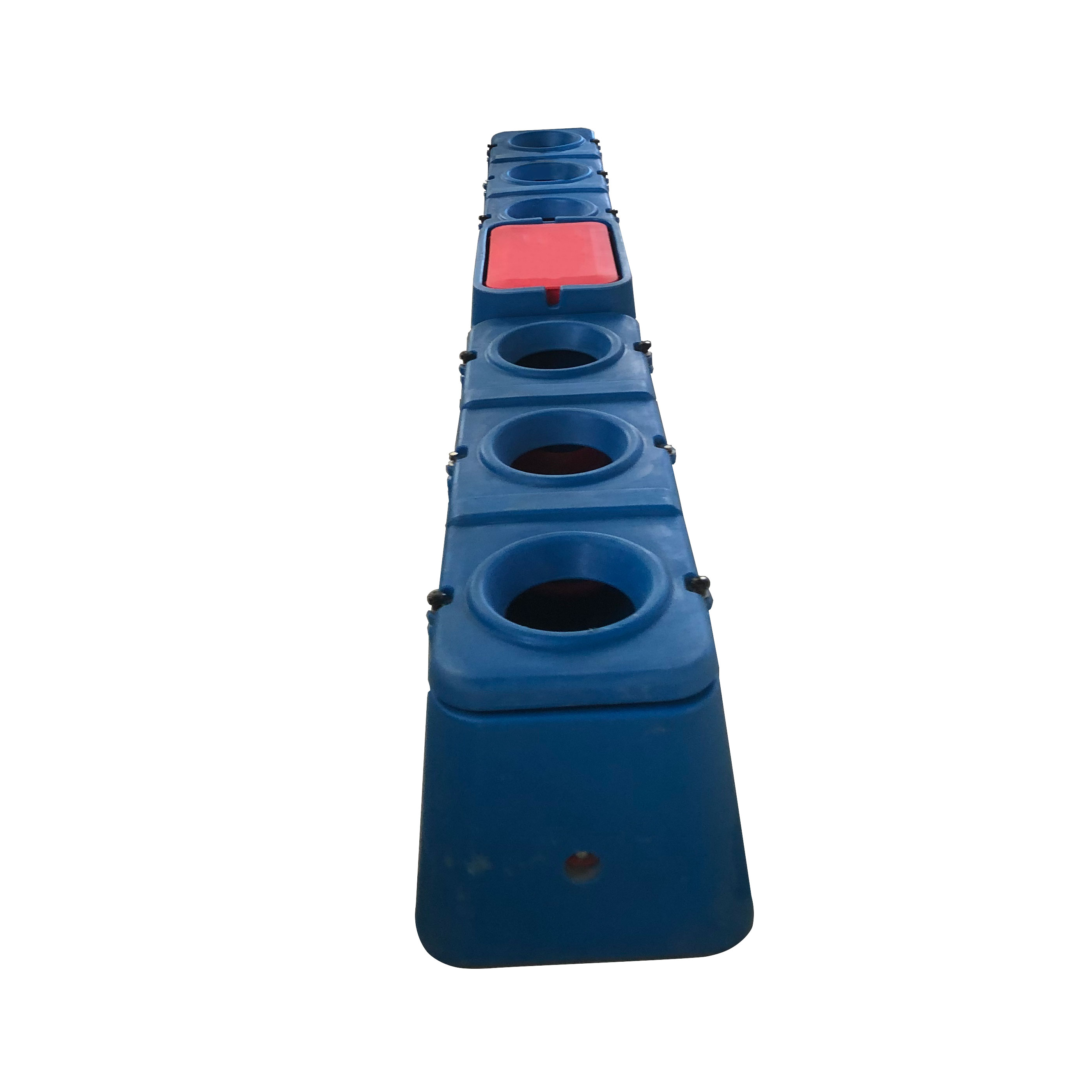

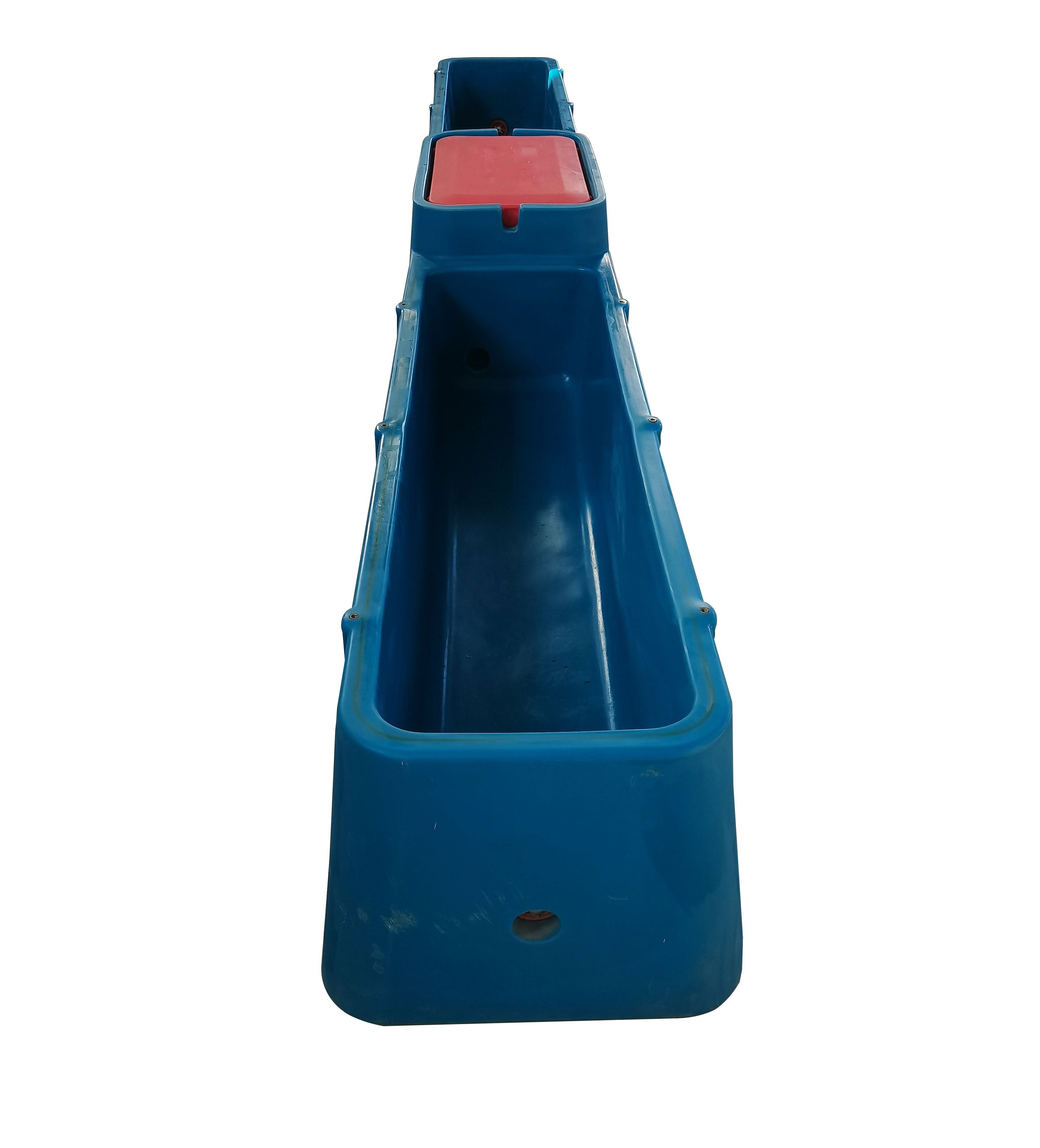

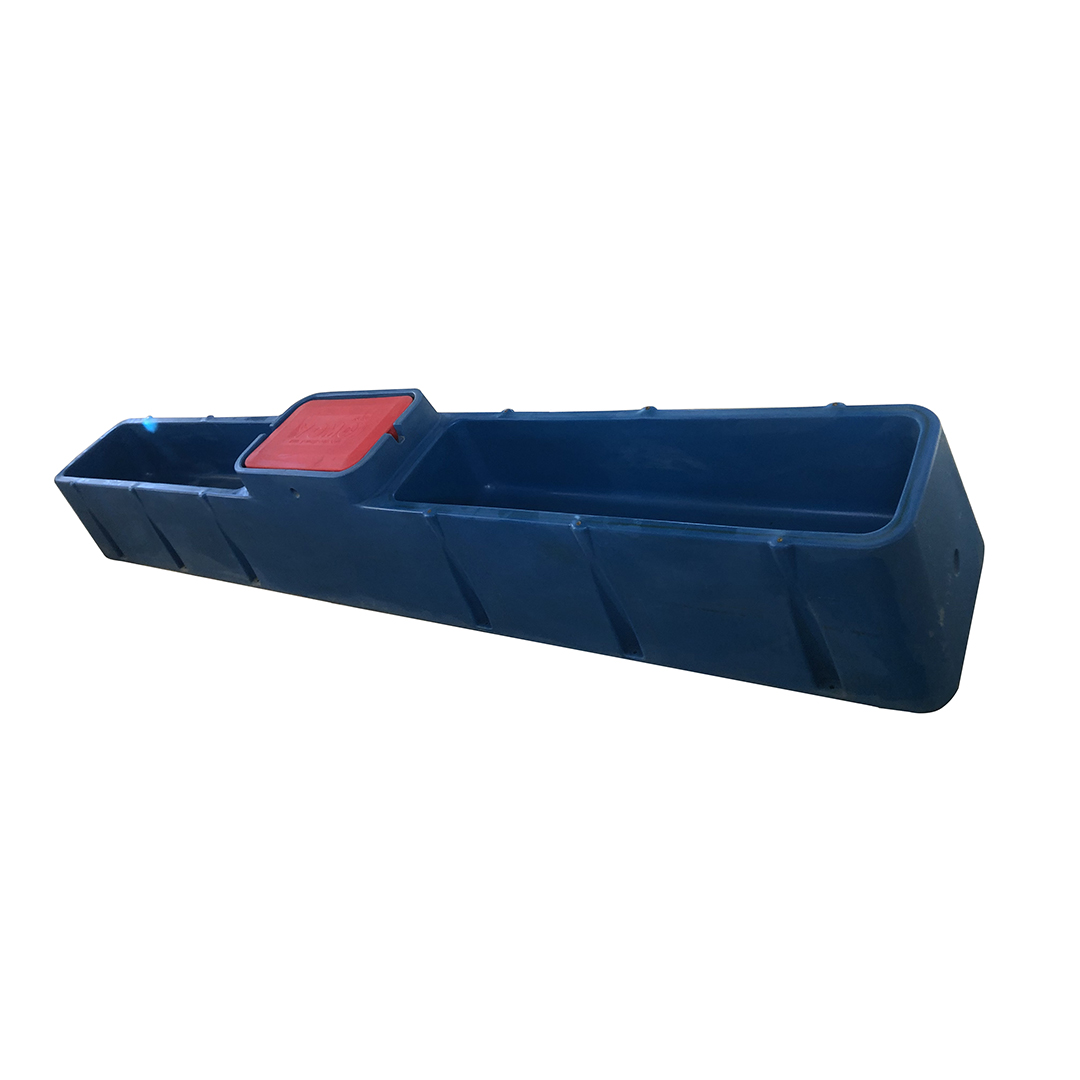

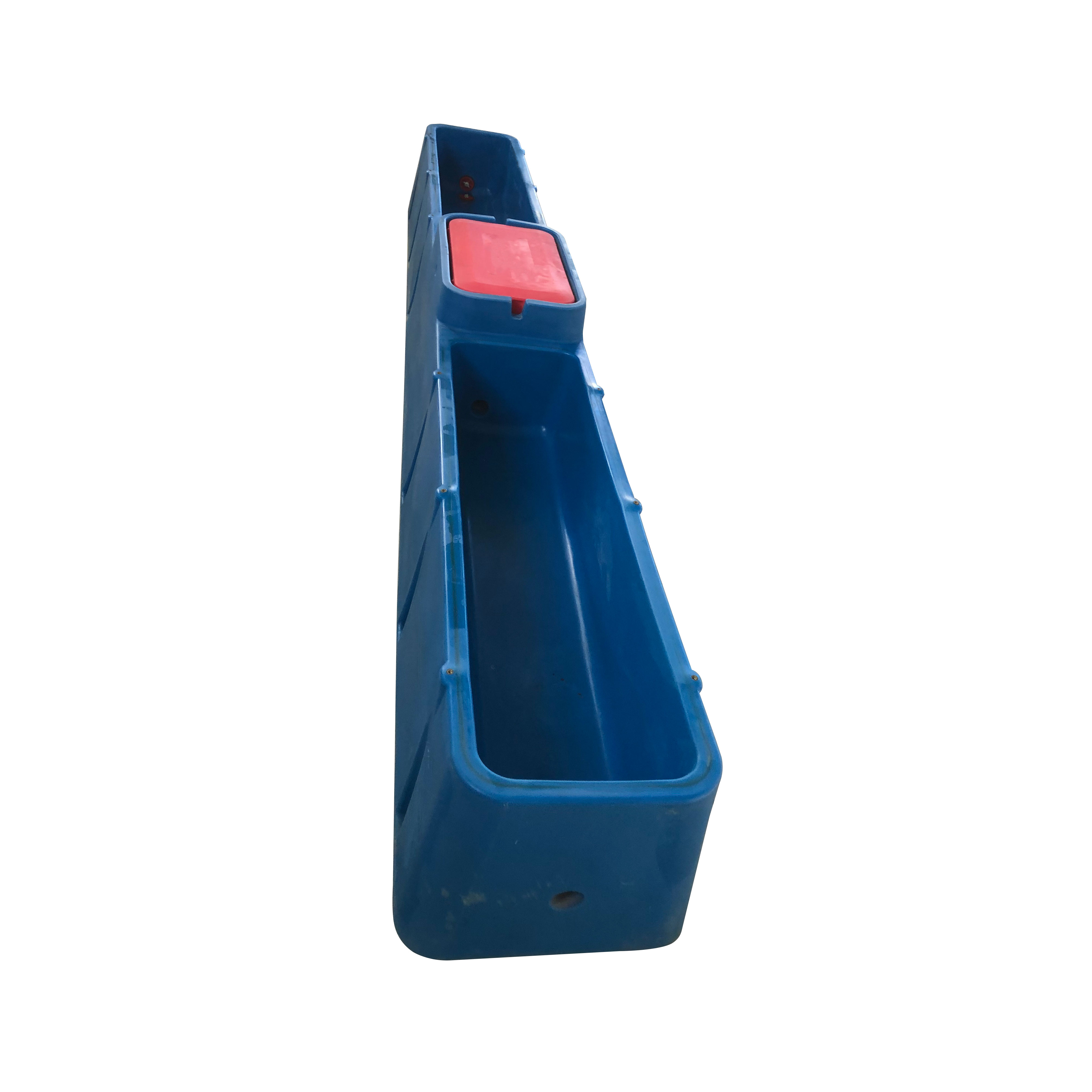

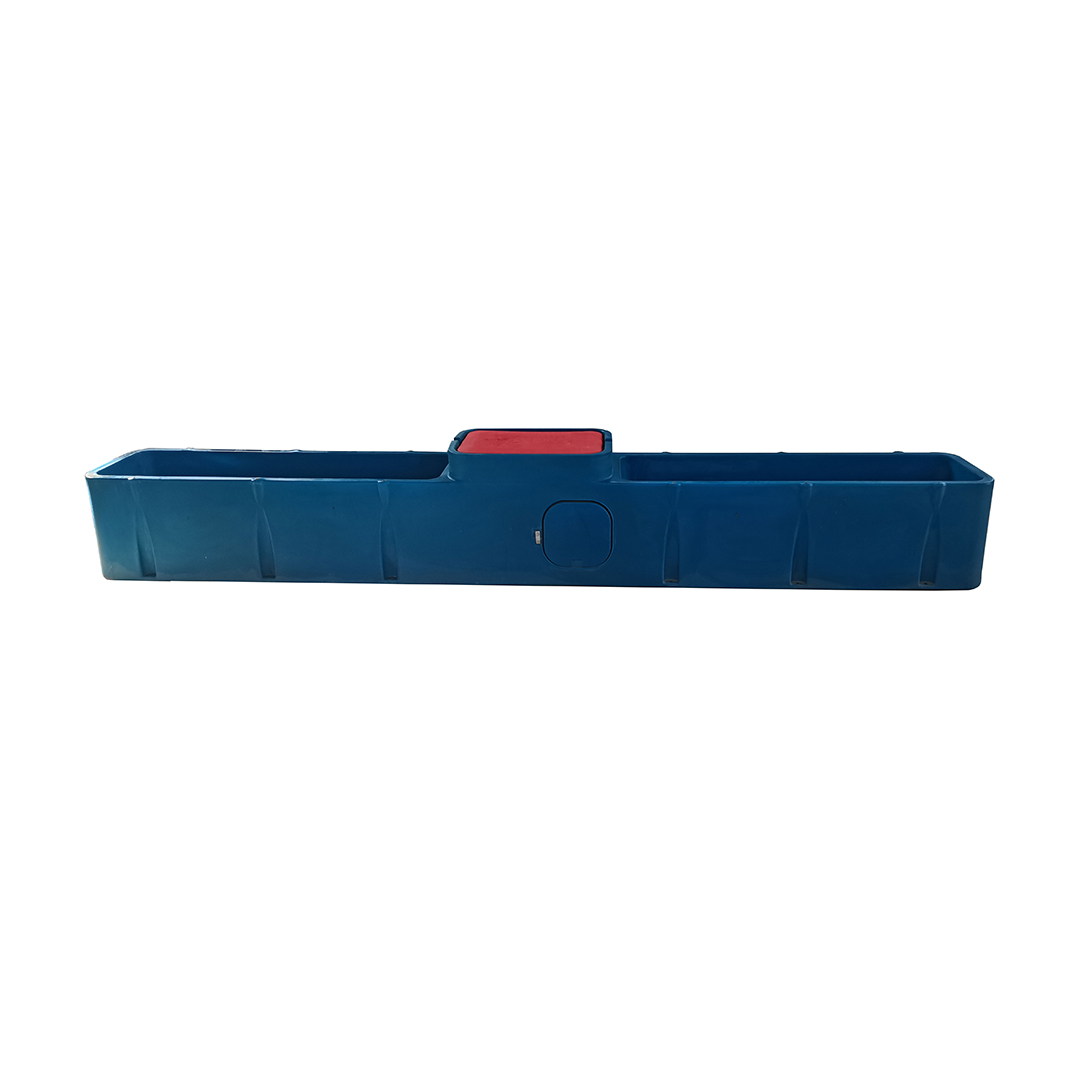

4M-6hole water trough（lid for option） |
4000mm*550mm*580mm |
|
|
2 |
Body of water trough |
||
|
3 |
outside |
thickness |
5mm |
|
4 |
Inside |
thickness |
5mm |
|
5 |
Insulation |
filler |
polyurethane |
|
6 |
Insulation |
thickness |
>50mm |
|
7 |
Inlet pipe diameter |
1 inch |
|
|
8 |
Inlet water control method |
Float valves |
|
|
9 |
Tank depth |
250mm |
|
|
10 |
Depth of valve compartment |
300mm |
|
|
11 |
Water capacity |
323.9L |
|
|
12 |
flow rate |
150L/min |
|
|
13 |
drainage system |
||
|
14 |
Bottom drain diameter (mm) |
60mm |
|
|
15 |
Drainage method |
flow automatically |
|
|
16 |
Diameter of side drains（mm） |
70mm |
|
|
17 |
Heating method |
||
|
18 |
Heating |
Self-controlled 800W ,Electric heating plate，36V/24V |
|
|
19 |
Temperature control |
＜15℃ heating |
|
|
20 |
Water supply and drainage pipes |
||
|
21 |
Water inlet pipe connection |
Stainless steel bellows |
|
|
22 |
Length of the inlet pipe |
2000mm |
|
|
23 |
Insulation material |
Insulated hose |
|
|
24 |
Insulation thickness |
20mm |
|
